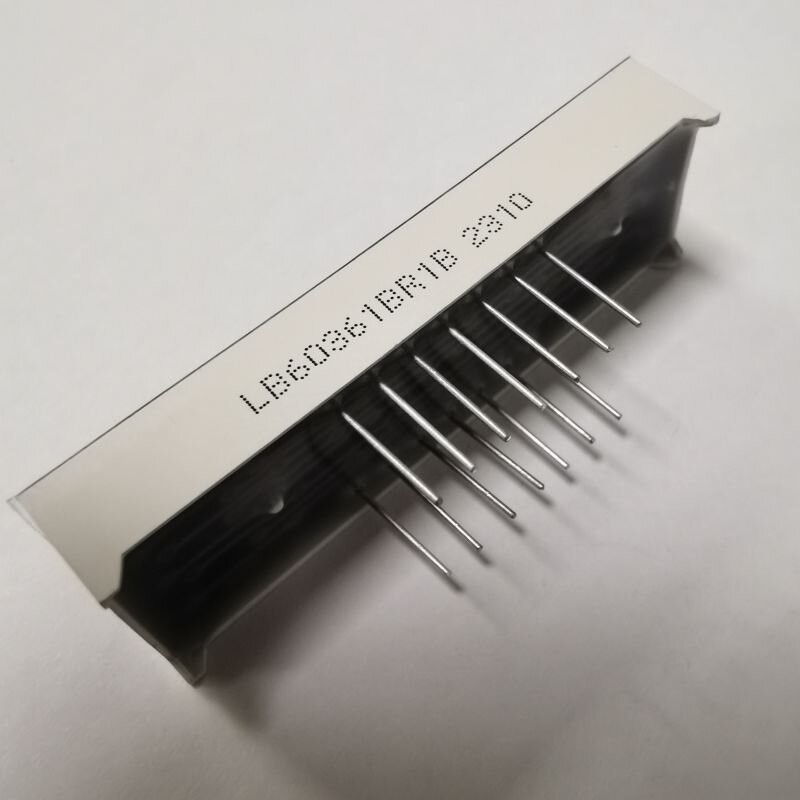

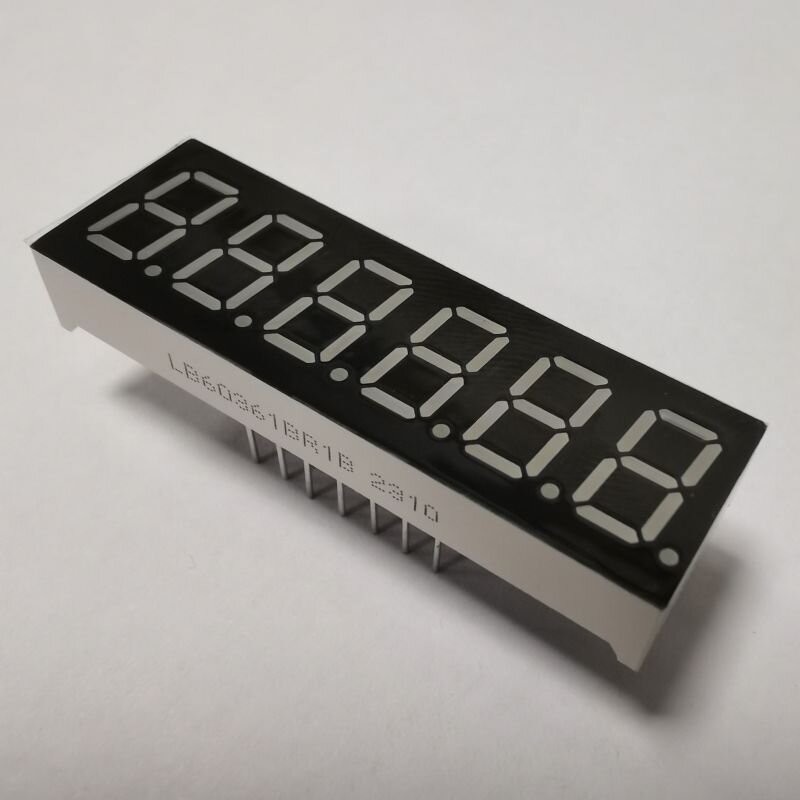

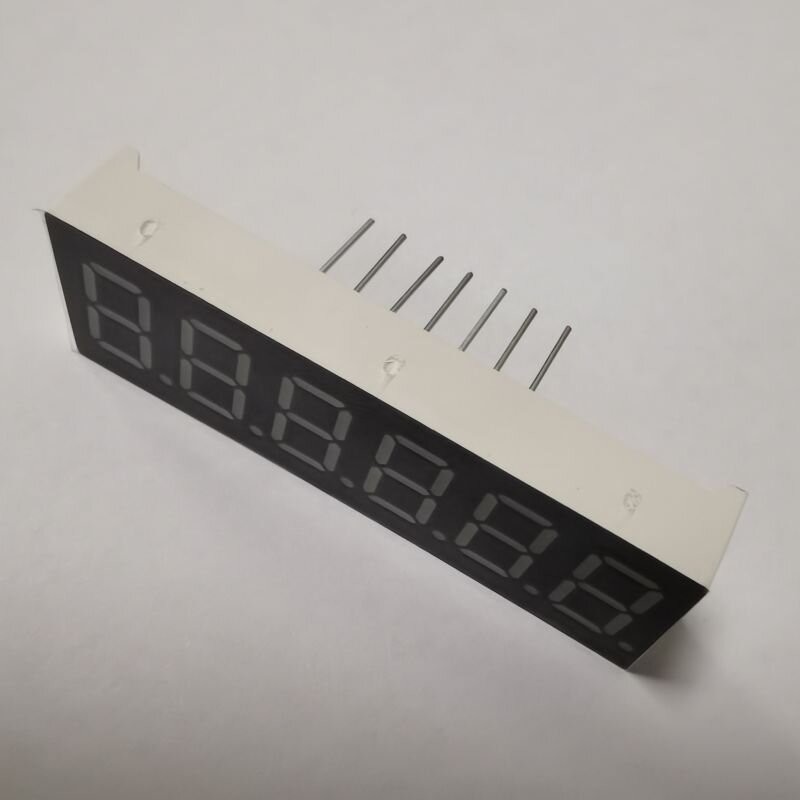

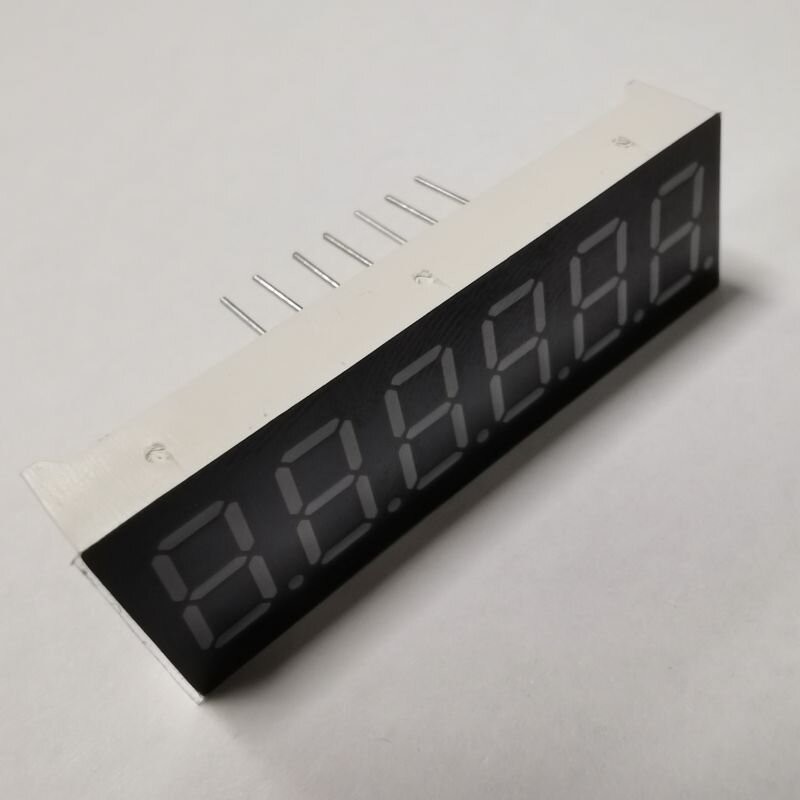

White 7 Segment LED Display 6 Digit 9.2mm Common Cathode for Digital Countdown Timer

Brand Name : LIGHT-BO

Model Number : LB60362WJ1B

Certification : ISO9001&RoHS

Place of Origin : Shenzhen,China

MOQ : 1000

Payment Terms : T/T,Western Union

Supply Ability : 50000PCS/day

Delivery Time : 7-15days

Packaging Details : EPE+Carton

polarity : Common Anode

Quality : High quality

Brightness : High Brightness

Life Span : 100000 hours

Pin Type : DIP

Delivery Date : 7-15DAY

Scanning Mode : Static Scan

Forward Voltage : 1.8-2.2V/LED

Forward Current : 5-10mA/LED

IP Rating : IP54

Contact Now

    • Digit height: 9.2mm (0.36-inch)
      Outer dimensions:43.5 x 14.0 x 7 mm

    • Common anode

    • Made with white segments, black surface

    • Display Colour: Orange
      Wavelength : 630-635nm
      Luminous intensity : 50-60 mcd
      Forward voltage: 1.8-2.2V
      Emitting colors: red, blue, yellow green, pure green, amber, orange, yellow and white

    • High luminous intensity and reliability

    • Low power Consumption

    • Extremely low current

    • Low evelopment cost

    • Stable performance

    • Continuous uniform segments

    • Long lifetime

    • Easy assembly

    • IC compatible

    • Certificate: RoHS

    • Absolute Maximum Ratings(Ta=25ºC)

      Parameter Symbol Ratings Unit
      Forward Current(per dice) Ipm 20 mA
      Reverse Voltage(per dice) Vr 5 V
      Power Dissipation(per dice) Pm 80 mW
      Operating Temperature Range Topr -40~+85 ºC
      Storage Temperature Range Tstg -40~+85 ºC
      Solder Temperature(≤3 seconds) Th 260

      ºC


      Code:Orange -F

      Parameter Symbol Condition Min Typ Max Unit
      Forward Voltage Vf If=10mA 1.8
      		2.4 V
      Reverse Voltage Vr Ir=10uA 5

      		V
      Luminous Intensty Iv If=10mA 60
      		80 mcd
      Spectrum With Of Half Value △λ If=10mA
      		20
      		nm
      Wavelength Dλ If=10mA 600
      		605 nm


    • Application:
    • Widely used for instrument panels,home appliances,digital temperature/humidity indicators and so on .

  • Certificate: RoHSWhite 7 Segment LED Display 6 Digit 9.2mm Common Cathode for Digital Countdown TimerWhite 7 Segment LED Display 6 Digit 9.2mm Common Cathode for Digital Countdown TimerWhite 7 Segment LED Display 6 Digit 9.2mm Common Cathode for Digital Countdown TimerWhite 7 Segment LED Display 6 Digit 9.2mm Common Cathode for Digital Countdown Timer
