Ultra Bright White 4 digit 0.39inch Common Anode 14 Segment LED Clock Display

Shenzhen Guangzhibao Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

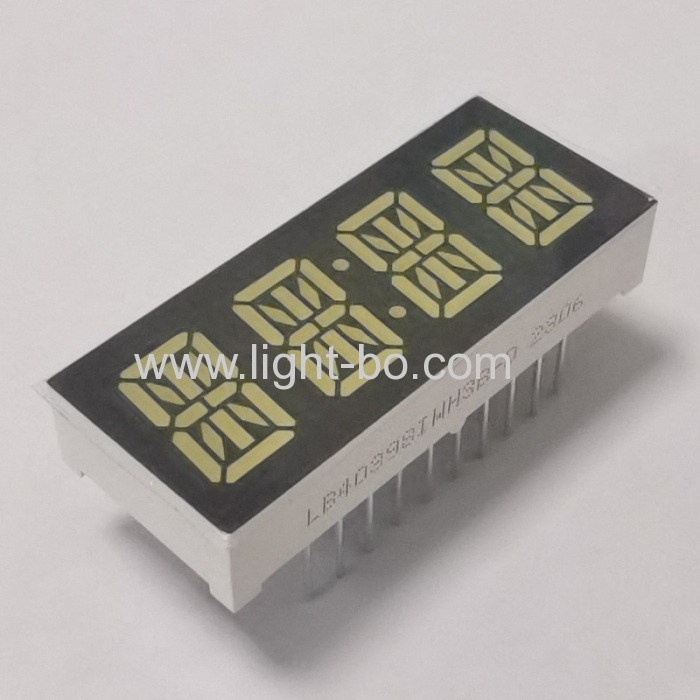

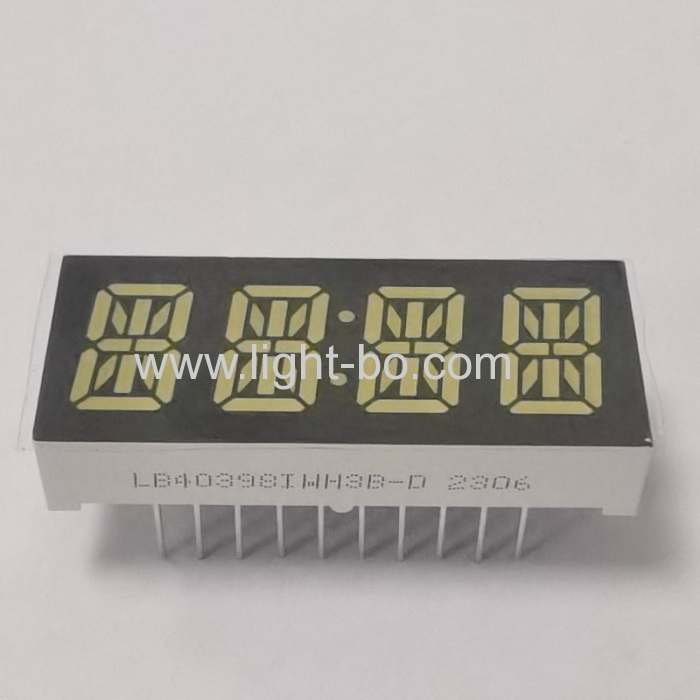

Ultra Bright White 4 digit 0.39inch Common Anode 14 Segment LED Clock Display

  • 1
  • 2
  • 3

Brand Name : LIGHT-BO

Model Number : LB40398IWH3B-D

Certification : ISO9001&RoHS

Place of Origin : Shenzhen,china

MOQ : 1000

Price : Negotiate

Payment Terms : TT in advance

Supply Ability : 20000pcs/days

Delivery Time : 15-20days

Packaging Details : EPE+Carton

Used : Stage Performance, Digital Display Screens, Message Boards,Information

Lifespan : 600000hrs

Dimension : 36*15*7mm

Digit Height : 0.39 inch

Advantage : Prompt Delivery,Cost competitive

Characteristic : Raw material with high quality

Contact Now

Product Description

Quick Detail of Segment LED Displays

1. We can supply you all kinds of 7 segment LED display:

--- Digit size: from 0.25" to 20"

--- Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment, 14 segment and 16 segment both available

3. Available Emitting color: Red, Yellow-green,green, blue, yellow, pink, white, bi-color

4. Available surface color: black,gray or red

Specification of Segment LED Displays

Product Name 0.39 Inch 4 Digit 14 Segment LED Display Other Optional
Part NO. LB40398IWH3B-D Can print your part number
Digit number 4 digit 1digit,2digits, 4digits,5digits,6 digits
Digit height 0.39 inch 0.25,0.36,0.39....5.0(inch)
Color Bright White blue,pure green, yellow-green, orange,etc.
Size 36*15*7mm Other size are supported
Polarity Common Anode Common Cathode
Life span 80000hours
Free Samples supported
Lead time for sample 5-7 working days Tooling samples are 15-20 working days
Lead time for formal order 15-20 working days According to order quantity
OEM&ODM Support Based on customer's drawing or idea
LOGO printing Support Based on customer's drawing or idea
MOQ 1000PCS Can accept 100-500pcs for first order

Color:White

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensty Iv If=20mA 25 35 mcd
Spectrum With Of Half Value λ If=20mA 20 nm
Wavelength If=20mA nm

Absolute Maximum Ratings(Ta=25ºC)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120 ºC
Storage Temperature Range Tstg -40~+120 ºC
Solder Temperature(3 sec) Th 260 ºC

Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.

Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Segment LED Displays.
Q: How long is your delivery time?
A: Delivery time:About 15-20 days; According to order quantity.
Q: What is your terms of payment?
A: T/T,Western Union,Paypal with small amount.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list.
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.We will offer the charge to you as you requested.
Q: May I have some samples for testing?
A: Yes,we can provide 5-10pcs free samples in your delivery cost.
